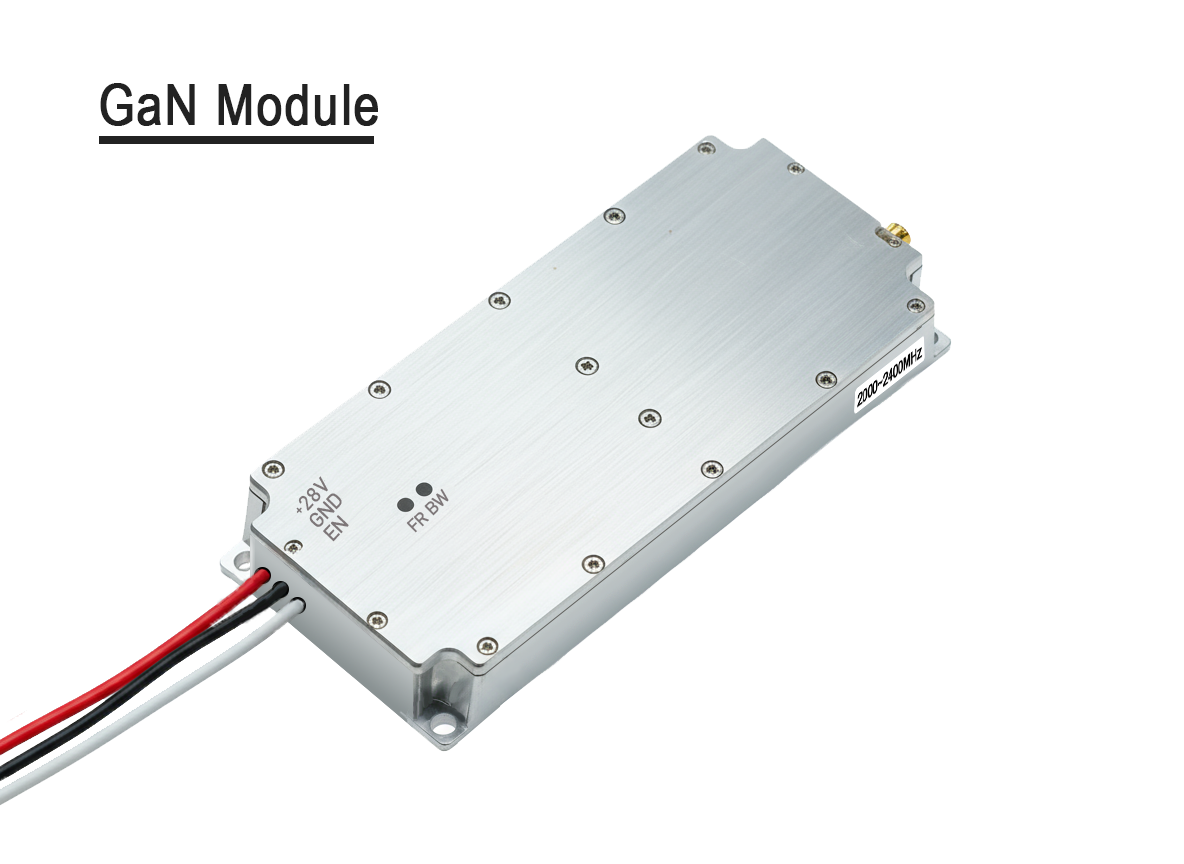

50W 2000–2400MHz GaN Drone Jamming Module
The 2000–2400MHz 50W GaN Drone Jamming Module is engineered for high-frequency counter-UAV applications requiring stable output power and efficient thermal management. Designed with GaN-on-SiC technology and mounted on a copper heat base, the module ensures reliable RF performance in continuous operation scenarios.
Covering the 2000–2400MHz band, it is suitable for integration into multi-band drone countermeasure systems used in security-sensitive environments.
Product Highlights
-
2000–2400MHz wide frequency coverage
-
Advanced Class AB GaN amplifier design
-
Stable 50W output power (47±1 dBm)
-
50 Ohm RF input/output impedance
-
Compact mechanical structure
-
Built-in high-speed noise modulation signal source
-
Custom signal options: VCO, DDS, SDR
-
Rugged construction for long-term deployment
Technical Parameters
| No. | Parameter | Specification | Remarks |
|---|---|---|---|
| 1 | Frequency Range | 2000–2400MHz | Customizable |
| 2 | Operating Voltage | 28V | 24–28V |
| 3 | Operating Current | ≤3.2–4.5A | @50W output |
| 4 | Output Power | 47±1 dBm | 50W |
| 5 | Scan Bandwidth | 270KHz | 100–500KHz optional |
| 6 | Signal Source | Built-in noise modulation | VCO/DDS/SDR optional |
| 7 | Operating Temperature | -20°C to +65°C | Normal operation |
| 8 | RF Connector | SMA Female | Standard |
| 9 | Status Indicators | Power / Over-voltage / Over-temperature | LED |
| 10 | Dimensions | 117 × 58 × 18 mm | Custom available |
| 11 | Weight | 300g | — |
GaN-on-SiC Power Technology
By utilizing Gallium Nitride devices on a Silicon Carbide substrate, this module achieves higher power density and improved heat dissipation compared to traditional RF solutions. The copper heat sink structure further enhances thermal stability, allowing the module to maintain consistent 50W output under demanding conditions.
This design provides:
-
Higher efficiency at high frequencies
-
Improved thermal resistance
-
Compact footprint for system integration
-
Increased operational lifespan
Integration and Deployment
The module is optimized for seamless integration into:
-
Fixed-site counter-UAV systems
-
Vehicle-mounted drone defense units
-
Portable RF shielding equipment
-
Multi-band anti-drone platforms
Its standardized 50 Ohm impedance and SMA interface simplify system matching and installation.
Customization Services
We offer flexible customization options including frequency tuning, scan bandwidth adjustment (100–500KHz), signal source configuration (VCO, DDS, SDR), and mechanical adaptations to meet project-specific requirements.
Summary
The 50W 2000–2400MHz GaN Drone Jamming Module combines high-frequency performance, compact design, and reliable thermal management. It is an ideal RF building block for professional counter-drone systems that require stable and efficient wideband interference capability.
