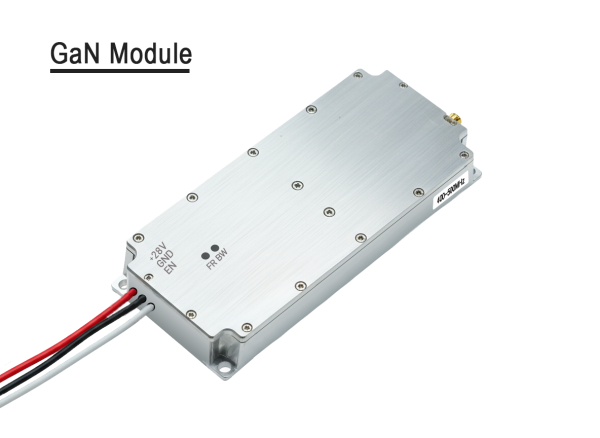

50W 400–500MHz GaN Drone Jammer Module

The 50W 400–500MHz GaN drone jammer module is a high-efficiency RF interference module designed for counter-UAV applications targeting mid-band drone communication signals. Built with GaN-on-SiC (Gallium Nitride on Silicon Carbide) technology, the module provides excellent thermal performance, high power density, and long-term reliability.

Mounted on a copper heat-dissipation base, the module maintains stable output power even during continuous operation. Its compact design and standard 50-ohm RF interface make it suitable for integration into a wide range of counter-drone systems such as portable, vehicle-mounted, or fixed installations.

Main Features

GaN-on-SiC Technology: High efficiency and superior thermal stability
Class AB Amplifier Design: Balanced performance between efficiency and signal stability
Instant Wideband Coverage: Supports fast analog scanning interference
Compact RF Module: Small size and lightweight for system integration
Stable Heat Dissipation: Copper base improves long-term operational reliability
Customizable Configuration: Frequency range, scan speed, and signal sources can be adjusted

Technical Specifications

Parameter	Specification	Notes
Frequency Range	400–500 MHz	Customizable within band
RF Output Power	47 ±1 dBm	50W
Operating Voltage	28V	24–28V
Operating Current	≤3.2–4.5A	At full output
Scan Speed	270 KHz	Customizable 100–500 KHz
RF Impedance	50 Ohms	Standard RF system
Signal Source	Built-in high-speed noise modulation	Optional VCO / DDS / SDR
Operating Temperature	-20°C to +65°C	Normal operation
RF Connector	SMA Female	Standard interface
Status Indicators	Power switch, over-voltage, over-temperature	LED
Dimensions	117 × 58 × 18 mm	Customizable
Weight	Approx. 300 g	Reference value

Integration and Applications

The 400–500MHz GaN jammer module is designed for flexible deployment in modern counter-drone platforms. Typical uses include:

Portable counter-UAV devices
Vehicle-mounted drone defense systems
Fixed low-altitude security installations
Border and infrastructure protection
Integrated multi-band anti-drone platforms

Thanks to its high efficiency GaN architecture, the module delivers strong RF interference performance while maintaining relatively low power consumption and stable thermal characteristics.

Frequently Asked Questions

1. What advantages does GaN technology provide in a jammer module?

GaN (Gallium Nitride) technology offers higher power density, better efficiency, and improved heat resistance compared with traditional RF amplifier technologies.

2. Can the signal source be customized?

Yes. The module includes a built-in noise modulation source, but it can also be configured with VCO, DDS, or SDR depending on the system requirements.

3. Is this module suitable for multi-band anti-drone systems?

Yes. Due to its compact size and standard RF interface, it can easily be integrated with other frequency modules to build a multi-band counter-UAV system.
