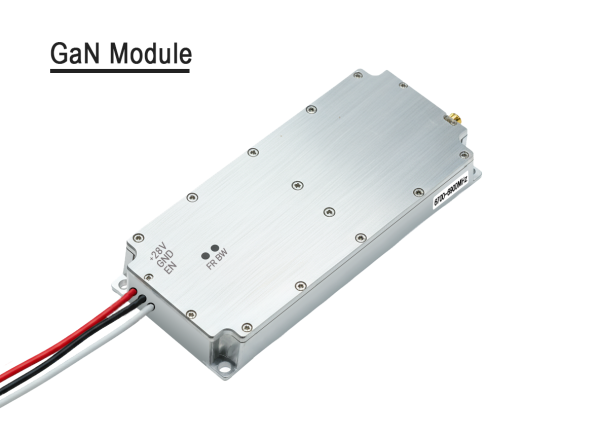

When drone threats emerge in the 6.7GHz to 6.9GHz range, you need reliable, high-power countermeasures. Our 6700-6900MHz GaN jammer module delivers 100W of clean, controllable interference in a rugged, field-ready package. Built around advanced GaN-on-SiC technology and patented thermal management, this module is engineered for sustained electronic attack missions where size, weight, and reliability are critical.
Core Technology & Design
This is not just an amplifier—it’s a complete jamming front-end. The module integrates a high-speed noise modulation source, class AB GaN architecture, and a copper-based thermal path that pulls heat away from the die instantly. The result is a module that maintains consistent 100W output across the entire 6700-6900MHz band, even under extended operation.
Key Specifications
| Parameter | Detail |
|---|---|
| Frequency | 6700 – 6900 MHz |
| Output Power | 50 ±1 dBm (100W) |
| Voltage | 28 V (28 – 32 V range) |
| Current | ≤9.2 A @ 100W |
| Sweep Rate | 270 kHz (custom 100 – 500 kHz) |
| Modulation | Internal high-speed noise (VCO/DDS/SDR opt.) |
| Impedance | 50 Ω |
| RF Connector | N Female |
| Indicators | Power, Overvoltage, Overtemperature |
| Operating Temp | -20°C to +65°C |
| Dimensions | 150 × 80 × 22 mm |
| Weight | 800 g |
Modulation & Customization
The built-in noise modulation source is optimized for maximum spectral spread. Need a different waveform? The input stage accepts external VCO, DDS, or SDR sources. Sweep rate can be tuned from 100kHz to 500kHz to match specific threat signals. This flexibility makes the module adaptable to evolving drone communication protocols.
Mechanical & Environmental
Housed in a machined aluminum chassis, the drone jammer module measures just 150mm × 80mm × 22mm and weighs 800g. It is designed for integration into gimbaled payloads, fixed ground stations, or vehicle-mounted systems. Operating from -20°C to +65°C, it withstands the thermal extremes of field deployment.
Primary Applications
-
C-Band drone jamming – Target 6.7-6.9GHz command and control links
-
Electronic warfare training – Realistic threat simulation
-
Spectrum denial – Temporary suppression of specific C-band channels
-
Test & measurement – High-power RF stress testing
Custom configurations are available, including alternative modulation sources, sweep profiles, and mechanical adaptations. Contact our engineering team to discuss your specific requirements.
