Product Features
- Frequency from 2500 ~4000MHz
- Class AB GaNdesign
- Instantaneous widebandwidth
- 50 Ohm Input/Outputimpedance
- Small size and Lightweight
- High reliability andRuggedness
Description
The AMP25004000-100W is designed for general purpose. Operating frequency range is from 2500~4000MHz. Gallium Nitride on SiC Technology is used and attached on a copper sub carrier.Improved thermal handling by patented technology.
Electrical Specifications @ VDC=30V, TC=50°C, 50W System
| PARAMETER | UNIT | MIN | TYP | MAX | SYMBOL |
| Operating Frequency | MHz | 2500 | – | 4000 | FO |
| Operating Bandwidth | MHz | – | 3250 | – | BW |
| Peak Output Power @CW Signal | W | – | 100 | – | PSAT |
| Input Power | dBm | – | -2±3 | – | PIN |
| Maximum Input Power @Without Damage | dBm | – | 5 | PIN, MAX | |
| Power Gain @Input Power 0dBm | dB | – | 50±3 | – | GP |
| Gain Flatness @Input Power 0dBm | dB | – | – | ±3 | ∆GP |
| Efficiency | % | – | 30 | – | EFF |
| Harmonics 1 to N @Output Power 100W | dBc | 10 | – | – | HN |
| Spurious Level | dBc | 60 | – | – | Spur |
| Input VSWR | dB | – | – | 2:1 | VSWR |
| Output VSWR | dB | – | – | 2:1 | VSWR |
| Operating Voltage | V | – | 28-30 | – | VDC |
| Current Consumption @Output Power 100W | A | – | 10 | – | IDC |
Environmental Specifications
| PARAMETER | UNIT | RATING | SYMBOL |
| Operating Case Temperature | °C | -20 ~ 85 | TC |
| Storage Temperature | °C | -40 ~ 105 | TSTG |
| Relative Humidity(Non-condensing) | RH | 95 | % |
Operating Voltages
| PARAMETER | UNIT | NOMINAL VOLTAGE | VOLTAGE ACCURACY | SYMBOL |
| Operating Voltage | V | 28-30 | ± 2% | VDC |
| HPA Enable Voltage | V | – | ||
| Current Monitor Voltage | V | – | ||
| Temp Monitor Voltage | V | Output Voltage 0.75V@25℃ (1℃/0.01V) | ||
Mechanical Specifications
| PARAMETER | UNIT | TYP |
| Mass | kg | 0.75 |
| Dimension | mm | 168.5 x 82.8 x 26.5 (Without Connectors) |
|
RF Connector |
– |
MCX Female : RF Input |
| N Female : RF Output | ||
| DC Connector | – | Through core capacitor, Male : Supply |
| Cooling | External Heat-sink Required |

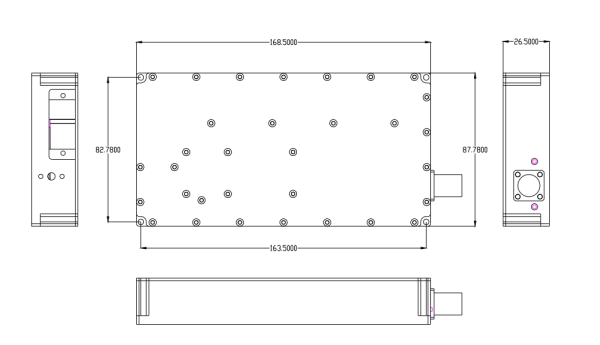

Outline Drawing
* Unit: mm[inch] | Tolerance ±0.2[.0078]
Pin Description
| Pin No | Description | Pin No | Description |
| A1 | – | 1 | +28V |
| A2 | – | 2 | GND |
| A3 | – | 3 | External TTL |
| A4 | – | 4 | RS485A |
| A5 | – | 5 | External TTL |
| A6 | – | 6 | PA_EN |
| A7 | – | 7 | RS485B |
| A8 | – | 8 | NC |
