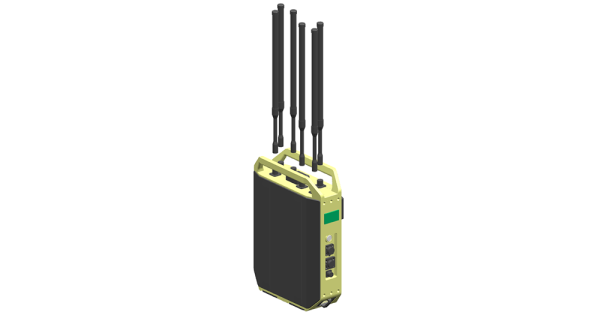

DR600-A All-scenario Drone Detection and Positioning Device
Spot, track, and identify drones from a distance — without blind spots. The DR600-A is built for operators who need one reliable tool to handle diverse environments, from urban rooftops to remote borders.
Core Features
| Feature | Benefit |
|---|---|
| 4 Detection & Analysing Modes | Switch between RF, spectrum, or hybrid analysis to adapt to any threat level. |
| FPV Real‑time Video Capture | See exactly what the drone sees — or get a live view of the target. |
| 12km+ Long‑range Identification | Pinpoint drone position and flight path beyond 12 km, even in GPS-spoofed areas. |

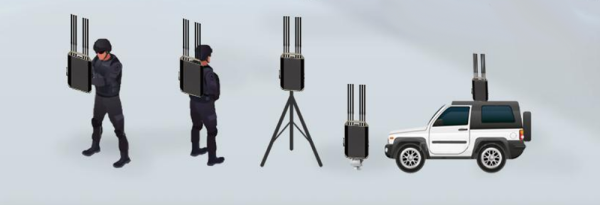

| 5 Diverse Usage Options | Use as fixed station, portable kit, vehicle-mount, marine, or rapid-deployment unit. |
| Multi‑device Alarm Push | Send alerts simultaneously to command center, phone, or tablet. |
Why It Works for Any Scenario
-
No more siloed detection – Combines passive RF scanning with active positioning.
-
Low false alarm rate – Analysing modes filter out consumer drones from birds or planes.
-
Instant visual confirmation – FPV video gives you eyes on the threat without launching your own drone.
-
Scalable alerts – One detection triggers alarms on up to 20 connected devices.
Quick Use Cases
| Scenario | How DR600-A Helps |
|---|---|
| Airport perimeter | 12km+ early warning of rogue drones near runways |
| Prison drone drops | Multi‑mode detection catches small, quiet drones |
| VIP outdoor event | Portable setup + FPV for real‑time decision making |
| Border patrol | Vehicle‑mount mode covers long stretches with live video relay |
Technical Snapshot
-
Detection range: ≥12 km (LOS)
-
Video feed: FPV, <200 ms latency
-
Alarm distribution: Push via LAN/4G/radio
-
Deployment time: <3 min (portable mode)
-
Operating temp: -20°C to 55°C
Ready to integrate with your existing command & control software — no vendor lock‑in.

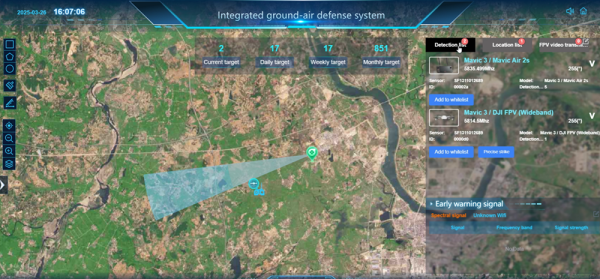

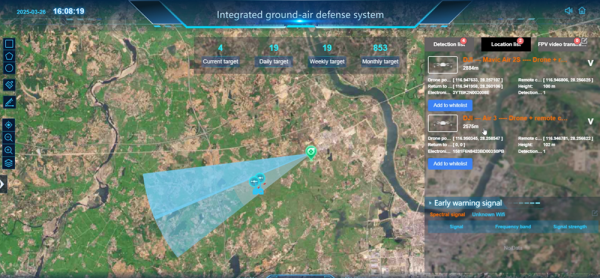

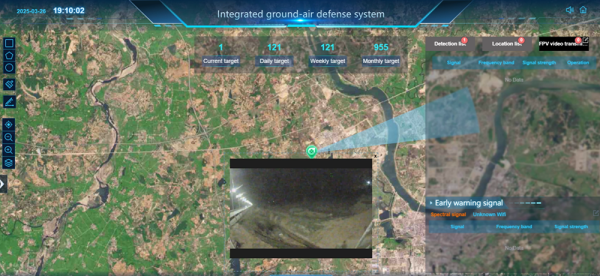

Device Operation Interface
Specification
| Parameter | Specification |
|---|---|
| Detects | Mainstream drones (DJI, Docom, Haboson), FPV drones, DIY drones |
| Detection range (customizable) | 70MHz – 6.2GHz (Default bands: 400MHz, 800MHz, 900MHz, 1.2GHz, 1.4GHz, 2.4GHz, 5.2GHz, 5.8GHz; other bands customizable) |
| Location models | Full DJI series, selected Docom models |
| Detection range (drones) | >10km for mainstream models, >2km for FPV drones |
| DID / RID location range | >10km (DID), >3km (RID) |
| Location accuracy | ≤10m |
| FPV image transmission detection | Supports all analog image transmission bands from 500MHz to 6GHz (customizable) |
| Image transmission detection radius | >1.5km (line of sight, clean electromagnetic environment) |
| Video capture distance | >1.5km (line of sight, clean electromagnetic environment) |
| Power supply | Lithium battery |
| Battery life | 26h (main unit) |
| Terminal dimensions (L × W × H) | 744.5mm (including antenna) × 280mm × 104mm |
