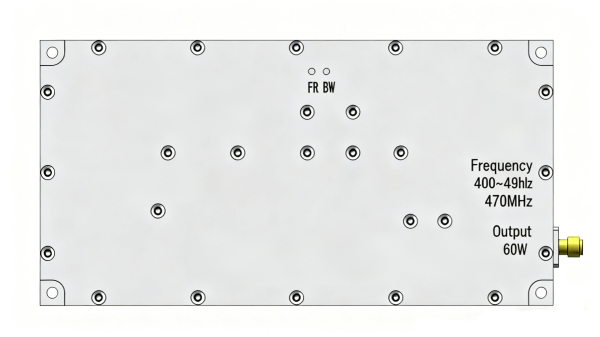

Model: SZMP4047MP60F1Product Description
The SZMP4047MP60F1 is a professional-grade jamming module specifically designed for the 400~470MHz UHF frequency band.
With 60W output power and ≥40% operating efficiency, this compact module delivers exceptional jamming performance.
Key Features
- High-power output: 60W in UHF band
- Operating efficiency ≥40%
- Built-in high-speed sweep source for effective jamming
- Compact dimensions: 138 × 50.5 × 17 mm
- Lightweight design: 0.22 kg
- Simple control interface: +5V/Open (ON) or Ground (OFF)
- SMA female output connector
Technical Specifications
| Parameter | Typical Value |
|---|---|
| Frequency Range | 400~470MHz |
| Output Power | 60W |
| Output VSWR | ≤2.0 |
| Operating Voltage | DC 12V~14V |
| Maximum Operating Current | 13A |
| Operating Efficiency | ≥40% |
| Switch Control | +5V or Open: ON / Ground: OFF |
| Output Connector | SMA Female |
| Jamming Source | Built-in High-Speed Sweep Source |
| Dimensions | 138 × 50.5 × 17 mm |
| Weight | 0.22 kg |
Applications
- Wireless communication disruption
- Security and surveillance systems
- Drone signal suppression
- Military communication countermeasures
- Radio frequency management
Performance Characteristics
The module operates within the 400~470MHz frequency range with 60W output power and maintains a VSWR ≤2.0.
It requires DC 12~14V power supply with a maximum current draw of 13A.
The built-in high-speed sweep source ensures effective jamming across the entire operating band.
Physical Specifications
Dimensions: 138mm (L) × 50.5mm (W) × 17mm (H)
Weight: 0.22kg
Connector: SMA female
Control Interface
The module features a simple control interface:
– Apply +5V or leave open to enable operation
– Connect to ground to disable operation
Note
All specifications are typical values under standard test conditions.
Actual performance may vary based on operating environment and configuration.
