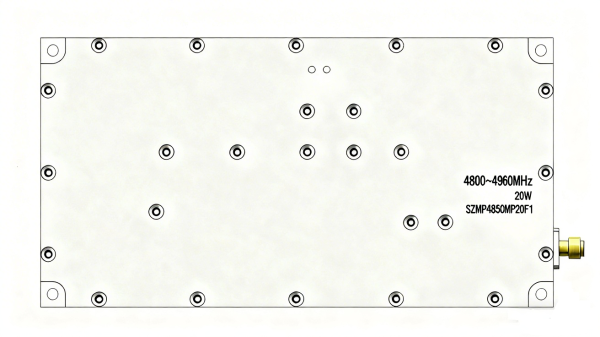

4800~4960MHz 20W Professional Drone Jammer Module
Detailed Technical Specifications
<极速td>DC 24V ~ 29V
| Parameter | Specification |
|---|---|
| Product Model | SZMP4850MP20F1 |
| Operating Frequency Range | 4800 ~ 4960MHz |
| Rated Output Power | 20W |
| Output VSWR | ≤ 2.极速0 |
| Operating Voltage Range | |
| Maximum Operating Current | 2.5A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| Dimensions | 115.5 × 46.5 × 21.0 mm |
| Weight | 0.21 kg |
Core Features
Drone-Specific Frequency Targeting
This anti-drone module is specifically optimized for 4800~4960MHz frequencies, targeting common drone control, telemetry, and video transmission signals used by commercial UAVs.
High-Efficiency Operation
≥40% operating efficiency with maximum current of 2.5A, ensuring optimal power utilization and thermal management for extended drone jamming operations.
Stable High-Power Output
Consistent 20W output with VSWR ≤2.0 maintains effective jamming across the entire drone communication band, ensuring reliable disruption of unauthorized UAV activities.
Advanced Thermal Design
Engineered heat dissipation system ensures reliable performance during extended anti-drone operations, critical for continuous security monitoring.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Integrated Frequency Sweeping
Built-in high-speed scanning rapidly covers the 4800~4960MHz band for comprehensive drone signal disruption, effectively countering frequency-hopping technologies.
