1350~1450MHz 150W High-Power Drone Jammer Module SZMP1315HP150F1

1350~1450MHz 150W High-Power Drone Jammer Module Ultra-High Power Anti-Drone Solution for L-Band Communication Systems The SZMP1315HP150F1 is an elite professional drone jammer module specifically engineered for the 1350~1450MHz L-band frequency range, delivering exceptional 150W output power for maximum drone disr……

1350~1450MHz 150W High-Power Drone Jammer Module

Ultra-High Power Anti-Drone Solution for L-Band Communication Systems

The SZMP1315HP150F1 is an elite professional drone jammer module specifically engineered for the 1350~1450MHz L-band frequency range, delivering exceptional 150W output power for maximum drone disruption capabilities. This advanced anti-drone module incorporates cutting-edge RF technology with a built-in high-speed sweeping source and integrated absorptive VSWR protection to ensure reliable operation under the most demanding conditions. Designed for integration into professional Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks, this drone signal jammer module for sale offers unparalleled performance against sophisticated drone systems operating in L-band frequencies. Comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively, making it suitable for military operations, government security, and critical infrastructure protection requiring ultra-high-power countermeasures in Wearable Drone Defender configurations.

Model: SZMP1315HP150F1

Detailed Technical Specifications

Parameter	Specification
Product Model	SZMP1315HP150F1
Operating Frequency Range	1350~1450MHz
Rated Output Power	150W
Output VSWR	≤ 2.0
Operating Voltage Range	DC 24V ~ 29V
Maximum Operating Current	15.0A
Operating Efficiency	≥ 40%
Switch Control Method	+5V or Floating: ON / Ground: OFF
极速RF Output Interface	SMA Female
Jamming Signal Type	Built-in High-Speed Sweeping Source
VSWR Protection	Built-in Absorptive VSWR Protection Device
Dimensions	168.5 × 84.5 × 23.0 mm
Weight	0.55 kg

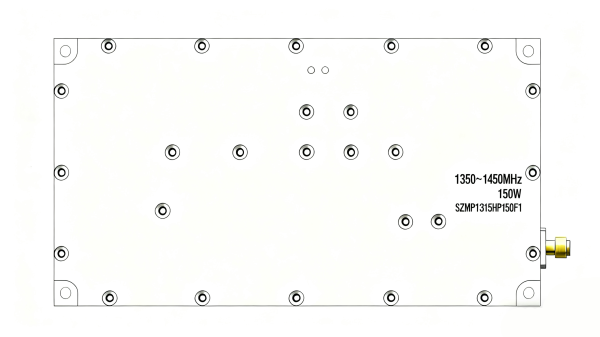

1350~1450MHz 150W High-Power Drone Jammer Module SZMP1315HP150F1

Core Features

Ultra-High Power L-Band Jamming

This drone jammer module delivers 150W output power specifically optimized for the 1350~1450MHz L-band, providing exceptional range against sophisticated drones utilizing satellite communication and GPS frequencies.

Advanced VSWR Protection

Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring maximum reliability in extreme field conditions for Tactical UAV Jammer Backpack applications.

High-Efficiency Design

≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and ultra-high-power Wearable Drone Defender configurations.

Enhanced Thermal Management

Advanced cooling system engineered for 150W operation, maintaining stability during prolonged drone jamming missions in Backpack Drone Jammer systems.

Intelligent Control Interface

TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.

Integrated High-Speed Sweeping

Built-in rapid frequency scanning covers the 1350~1450MHz band for comprehensive drone signal disruption, effectively countering UAVs utilizing satellite navigation and communication protocols.

Application Areas

Military-Grade Backpack Drone Jammer Systems

Portable Anti-Drone Stations

Tactical UAV Jammer Backpacks

Vehicle-Mounted Counter-Drone Systems

Satellite Communication Disruption

Military Base and Government Facility Security

Critical Infrastructure Protection

Technical Highlights Summary

The SZMP1315HP150F1 drone jammer module delivers 150W stable output power across the 1350~1450MHz L-band frequency range, featuring ≥40% operating efficiency and advanced thermal management. This ultra-high-power UAV jammer module’s integrated high-speed sweeping source and built-in absorptive VSWR protection ensure comprehensive coverage and reliability against drones utilizing satellite communication and navigation systems. The robust design (168.5×84.5×23mm, 0.55kg) enables deployment in military-grade Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks. As a drone jammer module for sale, it supports flexible +5V TTL or Floating/Ground control for seamless integration. Our comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively in various security scenarios, including Wearable Drone Defender configurations requiring maximum jamming power against satellite-connected UAVs.
