1800~2000MHz 100W High-Power Drone Jammer Module SZMP1820HP100F1

1800~2000MHz 100W High-Power Drone Jammer Module Advanced Anti-Drone Solution for Mobile Communication and GPS L2 Band Systems The SZMP1820HP100F1 is a professional drone jammer module specifically engineered for the 1800~2000MHz frequency band, delivering exceptional 100W output power for maximum drone disruption ……

1800~2000MHz 100W High-Power Drone Jammer Module

Advanced Anti-Drone Solution for Mobile Communication and GPS L2 Band Systems

The SZMP1820HP100F1 is a professional drone jammer module specifically engineered for the 1800~2000MHz frequency band, delivering exceptional 100W output power for maximum drone disruption capabilities. This advanced anti-drone module incorporates cutting-edge RF technology with a built-in high-speed sweeping source and integrated absorptive VSWR protection to ensure reliable operation under demanding conditions. Designed for integration into professional Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks, this drone signal jammer module for sale offers unparalleled performance against drones utilizing mobile communication and GPS L2 frequencies. Comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively, making it suitable for military operations, government security, and critical infrastructure protection requiring high-power countermeasures in Wearable Drone Defender configurations.

Model: SZMP1820HP100F1

Detailed Technical Specifications

Parameter	Specification
Product Model	SZMP1820HP100F1
Operating Frequency Range	1800~2000MHz
Rated Output Power	100W
Output VSWR</极速td>	≤ 2.0
Operating Voltage Range	DC 24V ~ 29V
Maximum Operating Current	12.0A
Operating Efficiency	≥ 40%
Switch Control Method	+5V or Floating: ON / Ground: OFF
RF Output Interface	SMA Female
Jamming Signal Type	Built-in High-Speed Sweeping Source
VSWR Protection	Built-in Absorptive VSWR Protection Device
Dimensions	168.5 × 84.5 × 23.0 mm
Weight	0.55 kg

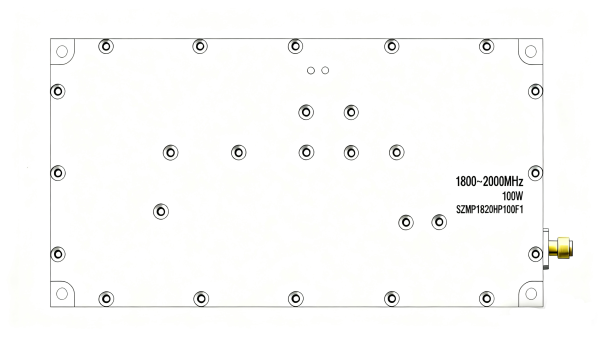

1800~2000MHz 100W High-Power Drone Jammer Module SZMP1820HP100F1

Core Features

High-Power Mobile and GPS Band Jamming

This drone jammer module delivers 100W output power specifically optimized for the 1800~2000MHz band, providing exceptional range against drones utilizing mobile communication (GSM, 4G) and GPS L2 frequencies.

Advanced VSWR Protection

Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring reliability in demanding field conditions for Tactical UAV Jammer Backpack applications.

High-Efficiency Design

≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and high-power Wearable Drone Defender configurations.

Enhanced Thermal Management

Advanced cooling system engineered for 100极速W operation, maintaining stability during prolonged drone jamming missions in Backpack Drone Jammer systems.

Intelligent Control Interface

TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.

Integrated High-Speed Sweeping

Built-in rapid frequency scanning covers the 1800~2000MHz band for comprehensive drone signal disruption, effectively countering UAVs utilizing mobile networks and GPS navigation.

Application Areas

Military-Grade Backpack Drone Jammer Systems

Portable Anti-Drone Stations

Tactical UAV Jammer Backpacks

Vehicle-Mounted Counter-Drone Systems

Mobile Network and GPS Disruption

Military Base and Government Facility Security

Critical Infrastructure Protection

Technical Highlights Summary

The SZMP1820HP100F1 drone jammer module delivers 100W stable output power across the 1800~2000MHz frequency band, featuring ≥40% operating efficiency and advanced thermal management. This high-power UAV jammer module’s integrated high-speed sweeping source and built-in absorptive VSWR protection ensure comprehensive coverage and reliability against drones utilizing mobile communication networks and GPS L2 systems. The robust design (168.5×84.5×23mm, 0.55kg) enables deployment in military-grade Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks. As a drone jammer module for sale, it supports flexible +5V TTL or Floating/Ground control for seamless integration. Our comprehensive documentation provides detailed instructions on how to use a drone jammer module effectively in various security scenarios, including Wearable Drone Defender configurations requiring high jamming power against cellular and GPS-connected UAVs.
