2000~2200MHz 100W High-Power Drone Jammer Module
Detailed Technical Specifications
</极速tr>
| Parameter | Specification |
|---|---|
| Product Model | SZMP2022HP100F1 |
| Operating Frequency Range | 2000~2200MHz |
| Rated Output Power极速 | 100W |
| Output VSWR | ≤ 2.0 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 12.0A |
| Operating Efficiency | ≥ 40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| RF Output Interface | SMA Female |
| Jamming Signal Type | Built-in High-Speed Sweeping Source |
| VSWR Protection | Built-in Absorptive VSWR Protection Device |
| Dimensions | 168.5 × 84.5 × 23.0 mm |
| Weight | 0.55 kg |

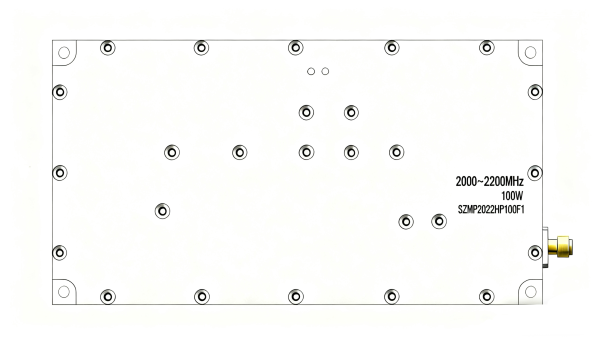

2000~2200MHz 100W High-Power Drone Jammer Module SZMP2022HP100F1
Core Features
High-Power 3G/4G and Satellite Band Jamming
This drone jammer module delivers 100W output power specifically optimized for the 2000~2200MHz band, providing exceptional range against drones utilizing 3G/4G mobile networks and satellite communication frequencies.
Advanced VSWR Protection
Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring reliability in demanding field conditions for Tactical UAV Jammer Backpack applications.
High-Efficiency Design
≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and high-power Wearable Drone Defender configurations.
Enhanced Thermal Management
Advanced cooling system engineered for 100W operation, maintaining stability during prolonged drone jamming missions in Backpack Drone Jammer systems.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Integrated High-Speed Sweeping
Built-in rapid frequency scanning covers the 2000~2200MHz band for comprehensive drone signal disruption, effectively countering UAVs utilizing 3G/4G networks and satellite communication protocols.
