20~1000MHz 100W Broadband Power Amplifier Module
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP0010H50P100F1 |
| Operating Frequency Range | 20~1000MHz |
| Gain | ≥52dB |
| Rated Output Power | 100W |
| Input VSWR | ≤1.5 |
| 2nd Harmonic | ≤-10dBc |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 12.0A |
| Operating Efficiency | ≥35% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| Input/Output Interface | SMA Female |
| Dimensions | 191 × 95 × 23 mm |
| Weight | 0.6 kg |

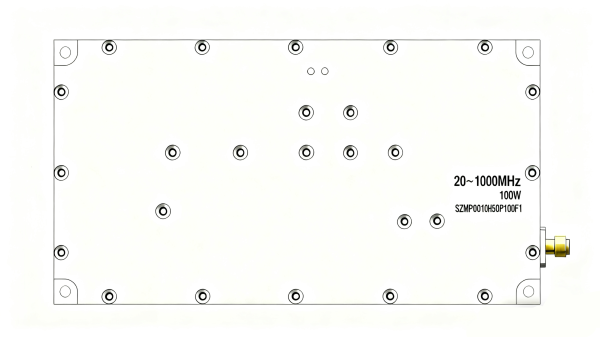

20~1000MHz 100W Broadband Power Amplifier Module SZMP0010H50P100F1
Core Features
Broadband High-Gain Amplification
This drone jammer amplifier module delivers 100W output power with ≥52dB gain across the 20~1000MHz spectrum, providing exceptional signal enhancement for comprehensive anti-drone systems targeting multiple frequency bands.
Excellent Harmonic Suppression
Advanced filtering technology ensures 2nd harmonic suppression of ≤-10dBc, maintaining signal purity and compliance with regulatory requirements for drone jamming applications.
Optimized Efficiency Design
≥35% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and efficient Wearable Drone Defender configurations.
Low Input VSWR
Input VSWR ≤1.5 ensures excellent impedance matching with various signal sources, maximizing power transfer and system stability in Backpack Drone Jammer applications.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Broadband Compatibility
Designed to work with various signal sources across the 20~1000MHz spectrum, making it ideal for multi-band drone jamming systems in Tactical UAV Jammer Backpack configurations.
