1550~1620MHz 100W High-Gain Power Amplifier Module

Professional Amplification Solution for Microwave Band Drone Jamming Systems

The SZMP1517H50P100F1 is a specialized power amplifier module engineered for drone jamming applications in the 1550~1620MHz microwave frequency band, delivering exceptional 100W output power with high gain of ≥52dB. This advanced anti-drone module incorporates cutting-edge RF amplification technology with low input VSWR (≤1.5) and integrated absorptive VSWR protection to ensure reliable operation in demanding drone disruption scenarios. Designed for integration into professional Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks, this drone signal amplifier module for sale offers unparalleled performance enhancement for microwave band drone countermeasure systems. Comprehensive documentation provides detailed instructions on how to use this amplifier module effectively within drone jamming systems, making it suitable for military operations, government security, and critical infrastructure protection requiring high-power amplification in Wearable Drone Defender configurations.

Model: SZMP1517H50P100F1

Detailed Technical Specifications

<极速td>Input/Output Interface

Parameter	Specification
Product Model	SZMP1517H50P100F1
Operating Frequency Range	1550~1620MHz
Gain	≥52dB
Rated Output Power	100W
Input VSWR	≤1.5
Operating Voltage Range	DC 24V ~ 29V
Maximum Operating Current	12.0A
Operating Efficiency	≥40%
Switch Control Method	+5V or Floating: ON / Ground: OFF
SMA Female
VSWR Protection	Built-in Absorptive VSWR Protection Device
Dimensions	191 × 95 × 23 mm
Weight	0.6 kg

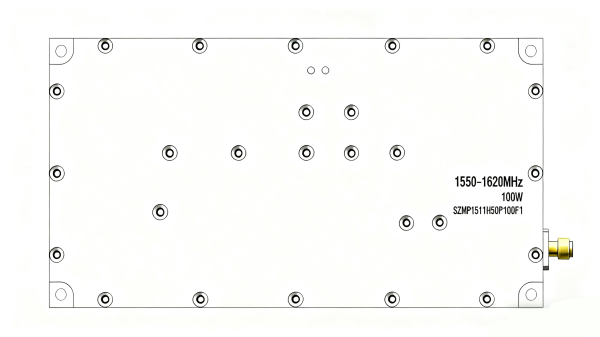

1550~1620MHz 100W High-Gain Power Amplifier Module SZMP1517H50P100F1

Core Features

Microwave Band High-Gain Amplification

This drone jammer amplifier module delivers 100W output power with ≥52dB gain specifically in the 1550~1620MHz microwave band, providing exceptional signal enhancement for anti-drone systems targeting satellite communication and advanced data link frequencies used by sophisticated drones.

Advanced VSWR Protection

Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring reliability in demanding field conditions for Tactical UAV Jammer Backpack applications.

High-Efficiency Design

≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and efficient Wearable Drone Defender configurations.

Low Input VSWR

Input VSWR ≤1.5 ensures excellent impedance matching with various signal sources, maximizing power transfer and system stability in Backpack Drone Jammer applications.

Intelligent Control Interface

TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.

Targeted Microwave Band Optimization

Specifically optimized for the 1550~1620MHz microwave band, this UAV jammer module provides precise amplification for drone countermeasure systems operating in satellite communication frequencies used by advanced UAVs.

Application Areas

Military-Grade Backpack Drone Jammer Systems

Portable Anti-Drone Stations

Tactical UAV Jammer Backpacks

Vehicle-Mounted Counter-Drone Systems

Satellite Communication Disruption

Military Base and Government Facility Security

Critical Infrastructure Protection

Technical Highlights Summary

The SZMP1517H50P100F1 drone jammer amplifier module delivers 100W stable output power with ≥52dB gain specifically in the 1550~1620MHz microwave frequency band, featuring ≥40% operating efficiency and advanced VSWR protection. This high-power UAV jammer module’s low input VSWR (≤1.5) ensures optimal impedance matching with various signal sources. The robust design (191×95×23mm, 0.6kg) enables deployment in military-grade Backpack Drone Jammer systems, Portable Anti-Drone Stations, and Tactical UAV Jammer Backpacks. As a drone jammer module for sale, it supports flexible +5V TTL or Floating/Ground control for seamless integration. Our comprehensive documentation provides detailed instructions on how to use this amplifier module effectively within drone jamming systems, including Wearable Drone Defender configurations requiring targeted microwave band power amplification capabilities for countering satellite-connected UAVs.
