3400~3600MHz 80W High-Gain Power Amplifier Module
Detailed Technical Specifications
极速
| Parameter | Specification |
|---|---|
| Product Model | SZMP3436H49P80F1 |
| Operating Frequency Range | 3400~3600MHz |
| Gain | ≥52dB |
| Rated Output Power | 80W |
| Input VSWR | ≤1.5 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 10.0A |
| Operating Efficiency | ≥40% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| Input/Output Interface | SMA Female |
| VSWR Protection | Built-in Absorptive VSWR Protection Device |
| Dimensions | 191 × 95 × 23 mm |
| Weight | 0.6 kg |

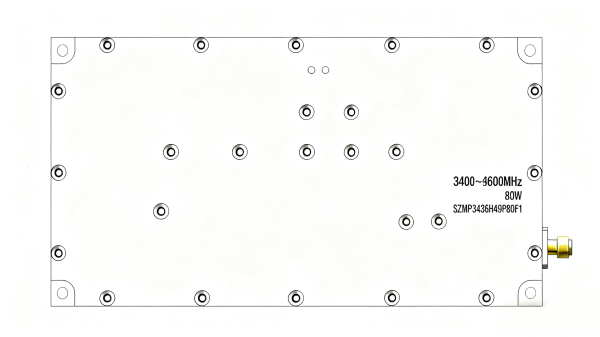

3400~3600MHz 80W High-Gain Power Amplifier Module SZMP3436H49P80F1
Core Features
5G C-Band High-Gain Amplification
This drone jammer amplifier module delivers 80W output power with ≥52dB gain specifically in the 3400~3600MHz 5G C-band, providing exceptional signal enhancement for anti-drone systems targeting 5G communication frequencies used by modern drones.
Advanced VSWR Protection
Integrated absorptive VSWR protection safeguards this anti-drone module against antenna mismatches, ensuring reliability in demanding field conditions for Tactical UAV Jammer Backpack applications.
High-Efficiency Design
≥40% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and efficient Wearable Drone Defender configurations.
Low Input VSWR
Input VSWR ≤1.5 ensures excellent impedance matching with various signal sources, maximizing power transfer and system stability in Backpack Drone Jammer applications.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Targeted 5G C-Band Optimization
Specifically optimized for the 3400~3600MHz band, this UAV jammer module provides precise amplification for drone countermeasure systems operating in 5G C-band frequencies used by commercial and professional drones.
