1800~2700MHz 80W High-Gain Power Amplifier Module
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP0827H47P50F1 |
| Operating Frequency Range | 1800~2700MHz |
| Gain | ≥52dB |
| Rated Output Power | 80W |
| Input VSWR | ≤1.5 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 10.0A |
| Operating Efficiency | ≥30%</极速td> |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| Input/Output Interface | SMA Female |
| Dimensions | 186 × 114 × 21.5 mm |
| Weight | 0.7 kg |

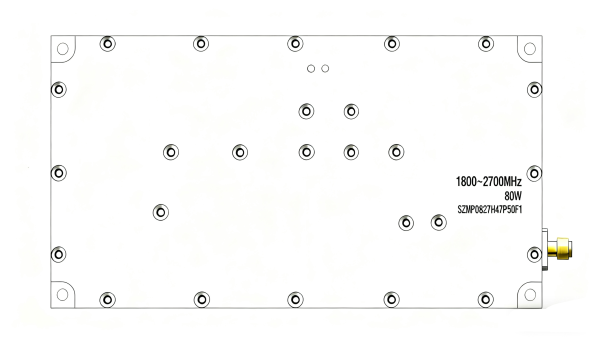

1800~2700MHz 80W High-Gain Power Amplifier Module SZMP0827H47P50F1
Core Features
4G/5G Band High-Gain Amplification
This drone jammer amplifier module delivers 80W output power with ≥52dB gain specifically in the 1800~2700MHz band, providing exceptional signal enhancement for anti-drone systems targeting 4G and 5G communication frequencies used by modern drones.
Low Input VSWR Design
Input VSWR ≤1.5 ensures excellent impedance matching with various signal sources, maximizing power transfer and system stability in Backpack Drone Jammer applications.
Optimized Efficiency Design
≥30% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and efficient Wearable Drone Defender configurations.
Compact Form Factor
The module’s compact dimensions (186×114×21.5mm) and lightweight design (0.7kg) enable easy integration into Tactical UAV Jammer Backpacks and other portable systems.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities.
Targeted Cellular Band Optimization
Specifically optimized for the 1800~2700MHz band, this UAV jammer module provides precise amplification for drone countermeasure systems operating in 4G and 5G communication frequencies.
