2500~6000MHz 30W High-Gain Power Amplifier Module
Detailed Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | SZMP2560H47P30F1 |
| Operating Frequency Range | 2500~6000MHz |
| Gain | ≥52dB |
| Rated Output Power | 30W |
| Input VSWR | ≤1.5 |
| Operating Voltage Range | DC 24V ~ 29V |
| Maximum Operating Current | 5.0A |
| Operating Efficiency | ≥25% |
| Switch Control Method | +5V or Floating: ON / Ground: OFF |
| Input/Output Interface | SMA Female |
| Dimensions | 208 × 133 × 21.5 mm |
| Weight | 1.0 kg</极速td> |

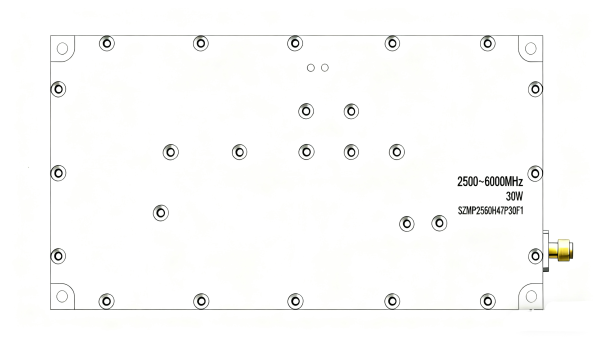

2500~6000MHz 30W High-Gain Power Amplifier Module SZMP2560H47P30F1
Core Features
Broadband 5G and Wi-Fi 6E High-Gain Amplification
This drone jammer amplifier module delivers 30W output power with ≥52dB gain across the extensive 2500~6000MHz frequency range, providing comprehensive signal enhancement for anti-drone systems targeting 5G and Wi-Fi 6E communication bands used by modern drones.
Low Input VSWR Design
Input VSWR ≤1.5 ensures excellent impedance matching with various signal sources, maximizing power transfer and system stability in Backpack Drone Jammer applications across the entire operating bandwidth.
Optimized Efficiency Design
≥25% operating efficiency with optimized power management, ensuring extended operation in Portable Anti-Drone Systems and efficient Wearable Drone Defender configurations while maintaining broadband performance.
Intelligent Control Interface
TTL level (+5V) and Ground control modes enable flexible integration into comprehensive anti-drone systems and remote activation capabilities for various operational scenarios.
Broadband Compatibility
Designed to work with various signal sources across the 2500~6000MHz spectrum, making it ideal for multi-band drone jamming systems in Tactical UAV Jammer Backpack configurations.
Robust Construction
The module’s durable design (208×133×21.5mm) and solid construction (1.0kg) ensure reliability and ease of integration into various drone countermeasure platforms.
