High-Frequency Drone Jammer Module – SZMS2760HF1
Key Features
• Extended frequency coverage (2700~6000MHz) for modern drone threats
• Precision power control with 0.5dB adjustment step
• Compact and lightweight design for portable deployment
• Low power consumption for extended mission duration
System Integration Advantages
Next-Generation Anti-Drone Capability
Engineered as a high-performance drone signal jammer module for integration into backpack drone jammer systems and tactical UAV jammer backpack configurations. The identical form factor (188×98×18.5mm) and weight (0.4kg) as our standard module allows for seamless upgrades and system compatibility.
Rapid Deployment Ready
Standardized interfaces including SMA output and RS485 control ensure quick integration into existing portable anti-drone system architectures. The consistent power requirements (DC24V~29V) simplify system design for wearable drone defender applications.
Enhanced Jamming Performance
Advanced DDS technology provides precise frequency targeting across the extended spectrum, enabling effective neutralization of drones using 5.8GHz video transmission, C-band frequencies, and other higher-band communications.

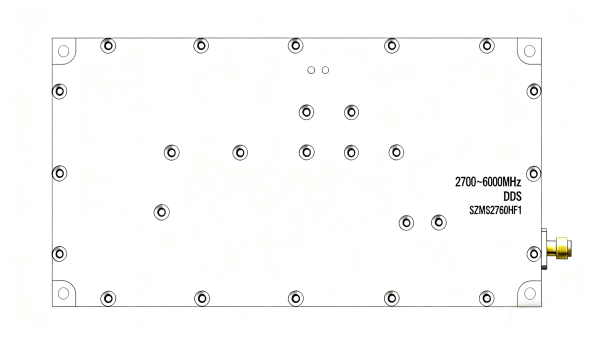

High-Frequency Drone Jammer Module – SZMS2760HF1
Technical Specifications – High-Frequency Anti-Drone Module
| Parameter | Specification |
|---|---|
| Model | SZMS2760HF1 (High-Frequency Drone Jammer Module) |
| Application | Advanced Anti-Drone Module, UAV Jammer Module |
| Jamming Frequency Range | 2700~6000MHz (Covers modern drone communication bands) |
| Maximum Output Power | 10dBm |
| Power Adjustment Range | 0~31.5dB (Precision jamming control) |
| Operating Voltage | DC24V~29V (Battery pack compatible) |
| Power Consumption | 600mA @28V (Optimized for portable operation) |
| Control Interface | RS485 (System integration ready) |
| Dimensions | 188×98×18.5mm (Backpack drone jammer compatible) |
| Weight | 0.4kg (Ideal for wearable systems) |
Backpack Drone Jammer applications. This high-frequency drone jammer module for sale is designed for authorized security and defense personnel operating against modern drone threats.
