Military Facilities Protection Law of the People’s Republic of China – Relevant Provisions
- Photography, videography, recording, surveying, mapping, and descriptions of military restricted zones are prohibited
- Aircraft are prohibited from low-altitude flights over military restricted zones
- Acts disrupting order in military zones or endangering military facilities, if constituting a crime, shall be investigated for criminal responsibility according to law
Scalability
For large military restricted zones or irregular terrains, the system can be upgraded to multi-system joint networking operation. By networking multiple devices, they can be deployed to multiple locations to expand defensive coverage.
Solutions
This solution addresses the characteristics of military restricted zones, project construction recommendations, and overall drone prevention and control requirements for military restricted zones. It establishes a three-dimensional anti-drone security system to achieve full-process prevention and control operations for drones: “planning, early warning, identification, positioning, tracking, and disposal.” It supports whitelist/blacklist functionality, does not affect normal patrols of friendly drones, and in extreme situations where conventional methods cannot achieve defensive effects, it can precisely locate drones and their controllers and implement capture.

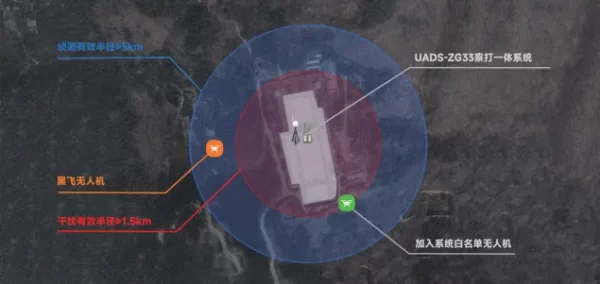

1. UADS-ZG33 Detection-Strike Integrated System
Utilizes drone detection systems and drone omnidirectional jamming systems. Supports full-spectrum detection and jamming, with whitelist/blacklist functionality allowing friendly drones to be added to the system’s drone identity list. When friendly drones are flying, the system will not trigger alarms or perform jamming to ensure normal passage of friendly drones.

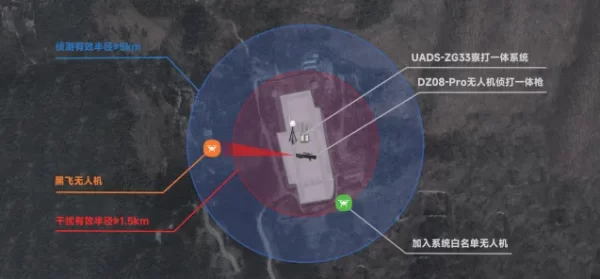

2. DZ08-Pro Drone Detection-Strike Integrated Gun
Features portable design for rapid deployment, operable by a single person. The device integrates detection and strike capabilities with a detection range of up to 3KM and jamming range of 2KM. When both enemy and friendly drones appear simultaneously, the detection-strike device can be flexibly deployed for directional strikes against invading drones.

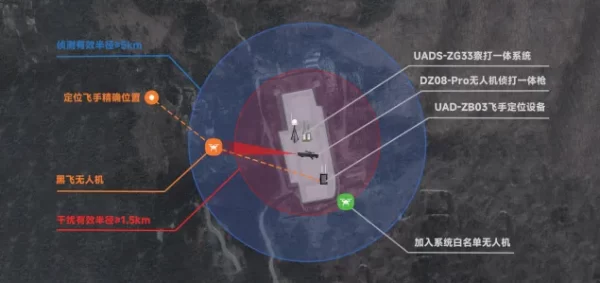

3. UAD-ZB04 Operator Location Device
Designed for extreme situations when detection-strike equipment is under maintenance or malfunctioning. The operator location device can accurately display target drone serial numbers, models, positions, speeds, altitudes, flight paths, controller positions and other information. It integrates drone detection and identification, early warning positioning, and trajectory tracking functions to implement capture and comprehensively ensure low-altitude security.
Technical Specifications
UADS-ZG33 Detection-Strike System Functions
- Full-spectrum detection frequency range: 30MHz-6GHz, jamming frequency range: 20MHz-6GHz
- Supports custom frequency bands, meeting the needs of over 95% of mainstream drones on the market
- Utilizes full-spectrum detection method, omnidirectional 360° detection without blind spots, detection radius 5-7 km
- Omnidirectional 360° jamming, jamming distance up to 3 km in open flat areas, 1 km in urban environments
- Supports whitelist/blacklist functionality, allowing addition or removal of detected drones
- Operates 24/7 for continuous detection and recording of airspace in the defense zone
- Supports remote control device start/stop, one-click automatic search, intelligent detection
DZ08-Pro Drone Detection-Strike Gun
- Portable design with high mobility, not constrained by any terrain environment
- Integrates drone detection and strike functions in a single device
- Dual-channel detection, six-channel jamming, covering most commonly used drone signal frequency bands
- Covers over 95% of drone models on the market
- Uses high-gain directional antenna with detection range up to 3000 meters
- Emits high-power same-frequency jamming signals with jamming range up to 2000 meters
- Device can select detection mode or jamming mode
UAD-ZB04 Operator Location Device
- Supports obtaining mainstream drone GPS coordinates, operator GPS coordinates, return point GPS coordinates
- Can obtain drone models and unique serial numbers
- Drone distance from detection device, azimuth angles, etc.
- 70M-6G real-time spectrum, supports real-time IQ data acquisition
- Gigabit Ethernet transmission, 5V power supply, 15W power consumption
- Detection distance not less than drone video transmission distance, detection range: 1-18 km, drone intrusion warning
- Can provide intrusion warnings for non-mainstream drones
