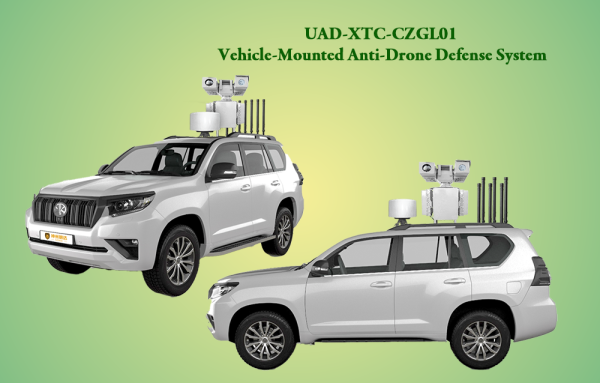

UAD-XTC-CZGL01 Vehicle Defense System: Product FAQ Guide
1. What is the UAD-XTC-CZGL01 Vehicle Defense System?
The UAD-XTC-CZGL01 is a vehicle-mounted counter-UAS (Unmanned Aerial System) solution designed to detect, track, and neutralize unauthorized drones. It integrates multiple advanced technologies—including phased array radar, spectrum detection, electro-optical tracking, and RF jamming—into a single mobile platform.
This system is engineered to secure low-altitude airspace by forcing drones to hover, return, or land before entering protected zones.
2. What core technologies are integrated into this system?
The system combines four key subsystems:
- Phased Array Radar – Provides 360° detection and tracking capabilities
- Full-Frequency Spectrum Detection – Identifies UAV signals across a wide range
- Electro-Optical Tracking – Enables visual confirmation and precision tracking
- RF Jamming Module – Disrupts drone communication and navigation signals
This multi-layered approach ensures accurate detection and effective countermeasures against various UAV threats.
3. What frequency bands does the system cover?
The UAD-XTC-CZGL01 supports wideband interference from 20 MHz to 6 GHz, covering the most commonly used drone communication and navigation frequencies.
It specifically targets key bands such as:
- 433 MHz
- 915 MHz
- 1.5 GHz
- 2.4 GHz
- 2.5 GHz
This allows it to effectively counter up to 99% of mainstream UAV models.
4. What is the detection and jamming range?
The system offers strong operational performance:
- Radar detection range: up to 1.5 km
- Spectrum detection radius: 5–7 km
- Jamming distance:
- Up to 3000 meters (open areas)
- Around 1000 meters (urban environments)
Actual performance may vary depending on environmental conditions and drone types.
5. Can the system track multiple drones simultaneously?
Yes. The system is designed for multi-target scenarios:
- Radar can track up to 40 targets
- Spectrum detection can monitor up to 50 targets
This makes it suitable for complex environments with multiple UAV threats.
6. What makes the vehicle-mounted design advantageous?
The vehicle-integrated structure provides several operational benefits:
- Rapid deployment in temporary or remote areas
- Mobility, allowing dynamic response to threats
- Flexible installation, adaptable to various vehicle platforms
- Standalone or networked operation, supporting scalable defense systems
This design is ideal for missions where fixed installations are impractical.
7. What are the capabilities of the electro-optical system?
The system includes both infrared and visible cameras:
- Infrared imaging for night and low-visibility conditions
- High-resolution visible camera (1080p) with up to 30× optical zoom
- Accurate tracking up to ~1.2 km (e.g., Phantom-class drones)
These features enhance identification and tracking accuracy in real-time operations.
8. What applications is this system suitable for?
The UAD-XTC-CZGL01 is widely used in:
- Military and defense operations
- Border and coastal security
- Critical infrastructure protection
- Government facilities
- Large-scale events and public safety
Its mobile deployment capability makes it particularly effective for temporary security missions and rapid-response scenarios.
9. Does the system support customization?
Yes. The manufacturer provides tailored solutions, including:
- Frequency customization
- Deployment planning
- System integration and installation support
This ensures the system can meet specific operational requirements across different environments.
10. How does the system neutralize drones?
Instead of physically destroying drones, the system uses electronic countermeasures to:
- Disrupt control signals
- Block video transmission
- Interfere with GNSS navigation
As a result, drones are forced to hover, return to origin, or land safely, minimizing collateral risks.
Conclusion
The UAD-XTC-CZGL01 Vehicle Defense System is a comprehensive and mobile counter-drone solution that combines detection, tracking, and jamming into one integrated platform. With its wide frequency coverage, multi-target capability, and flexible deployment, it provides reliable protection for modern low-altitude airspace security challenges.
