As drone threats continue to evolve, traditional countermeasures are no longer sufficient. The UAD-XTF-PZG03 Anti-Drone Three-Dimensional Defense System represents a new generation of integrated counter-UAS technology, combining detection, interference, and deception into a unified platform. Below is a detailed Q&A to help you better understand its capabilities and applications.

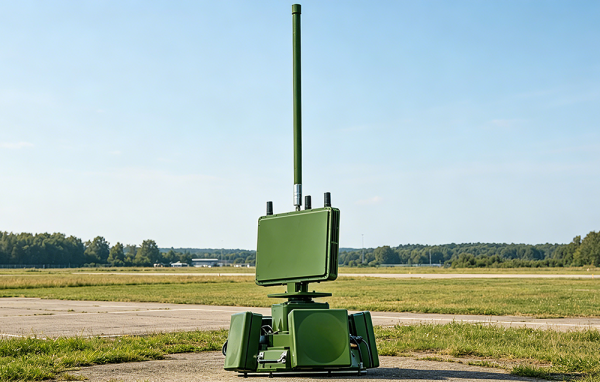

Q1: What is the UAD-XTF-PZG03 anti-drone system?
The UAD-XTF-PZG03 is a comprehensive low-altitude defense system designed to detect, identify, and neutralize unauthorized drones. It integrates multiple technologies—including radar, spectrum monitoring, radio frequency (RF) jamming, and navigation deception—into a single platform, forming a “four-in-one” defense solution.
Q2: What makes this system “three-dimensional defense”?
The system is called “three-dimensional” because it provides multi-layered protection across different detection and response stages. It combines spatial detection (radar), signal analysis (spectrum), and active countermeasures (jamming and spoofing), ensuring full-spectrum coverage against drone threats.
Q3: What are the core functions of the system?
The UAD-XTF-PZG03 delivers four primary capabilities:
- Detection: Radar and RF spectrum monitoring identify drones in real time
- Identification: Dual verification improves accuracy and reduces false alarms
- Interference: RF signals disrupt control and navigation links
- Deception: Navigation spoofing forces drones to land or leave the area
This integrated approach allows the system to both detect and neutralize threats efficiently.
Q4: What is the detection and coverage range?
The system offers layered detection and response zones:
- Spectrum detection range: Over 5 km
- Radar detection range: Up to 1.5 km
- Interference radius: Over 1 km
- Deception distance: Over 1 km
Additionally, the system supports hierarchical warning zones such as early warning, alarm, and core defense areas, enabling structured airspace protection.
Q5: What frequency bands does it support?
The system is designed to counter a wide range of drone communication and navigation signals:
- Interference bands: 400–2500 MHz, 5150–5850 MHz, 1550–1620 MHz
- Navigation deception: GPS, Galileo, GLONASS, and BeiDou
This wideband capability ensures compatibility with most commercial and industrial UAVs.
Q6: Does the system support automatic operation?
Yes. One of the key advantages of the UAD-XTF-PZG03 is its intelligent automation. Once configured, the system can operate unattended, automatically detecting and countering unauthorized drones. Users can customize interference duration and operational cycles based on mission requirements.
Q7: How does the dual detection mechanism improve performance?
The anti-drone system uses both radar and spectrum analysis for detection and identification. This dual-layer approach enhances accuracy, reduces false positives, and ensures reliable tracking within a 2–3.5 km range before initiating countermeasures.
Q8: What are the key technical specifications?
- Radar frequency: 5400–5600 MHz
- Coverage: 360° azimuth, 40° elevation
- Power consumption: ≤100W (detection), ≤600W (countermeasures)
- Power supply: AC 180–250V
- Dimensions: 585 × 585 × 1460 mm
These specifications make the system suitable for fixed-site deployment in critical security environments.
Q9: What scenarios is the system best suited for?
The UAD-XTF-PZG03 is ideal for:
- Military bases and border security
- Airports and critical infrastructure
- Government buildings and sensitive facilities
- Large-scale events and urban security zones
Its integrated design allows it to operate effectively in both standalone and networked deployments.
Q10: What are the main advantages of this system?
- All-in-one integration: Detection, jamming, and spoofing in one platform
- Layered defense strategy: Structured protection zones for enhanced security
- High automation: Minimal human intervention required
- Wideband coverage: Effective against multiple UAV types
- Reliable performance: Dual detection ensures accuracy and efficiency
Conclusion
The UAD-XTF-PZG03 Anti-Drone Three-Dimensional Defense System represents a significant advancement in counter-UAS technology. By integrating detection, identification, interference, and deception into a single intelligent platform, it provides a robust and scalable solution for modern low-altitude security challenges.
For organizations facing increasingly complex drone threats, adopting a multi-layered, automated system like the UAD-XTF-PZG03 is a strategic step toward comprehensive airspace protection.
